Chapter 1.

Bottom-up introduction

Hjálmar Hátún
The stock size of several demersal fish stocks (e.g. Atlantic cod, Gadus morhua) and the size of several seabird species (e.g. kittiwakes, Rissa tridactyla) in the subpolar North Atlantic (SPNA) have been declining during the last 2–3 decades. A critical question is whether this is due to anthropogenic influence, natural environmental cycles or maybe (and more likely) a combination of these. The fisheries do, naturally, directly impact commercial fish stocks, but direct exploitation cannot explain e.g. the decline of kittiwakes, which are not being harvested by humans. A decline in common food resources for both fish and birds is a plausible candidate, where the ecologically important copepod Calanus finmarchicus and forage fish like sandeel, Ammodytes marinus, Norway pout, Trisopterus esmarkii are primary candidates. While acknowledging the importance of top-down impacts, the following introduction is limiting on bottom-up (food driven) processes. This bottom-up perspective focuses on the most plausible physical drivers underlying ecosystem changes on the south Iceland, Faroe and Norwegian shelves – especially through the trophic pathway from large zooplankton (copepods) via forage fish (e.g. sandeel and Norway pout) to commercial fish stocks and seabirds. Historical temporal changes in the SPNA are here categorized into: i) recurrent pulses every 5–8 years, ii) major longer-lasting shifts and iii) long-term trends.
The strong and highly variable atmospheric jet stream impacts all three shelf environments both through direct air-sea interaction, and indirectly through changes in large-scale ocean circulation, that subsequently impacts the shelves laterally by ocean-shelf interaction. In our simplified perspective, we discuss how the size and circulation strength of the subpolar gyre (SPG) regulates the hydrography (temperature and salinity) (Hátún et al., 2005) and the biogeochemical and biological content (Hátún et al., 2016; Hátún, et al., 2017) in the relatively warm and saline Atlantic Water (AW). This Atlantic inflow flows westwards south of Iceland, crosses the Iceland-Faroe ridge and flows poleward through the Faroe-Shetland Channel. The AW properties thus impact the south Iceland (Hátún et al., 2016) and Faroes (Hátún, Larsen, et al., 2021; Jacobsen et al., 2019) shelves directly and are likely to influence the Norwegian shelf as well. Immediately north of the Iceland-Faroe ridge, the AW meets southeastward flow of cold and low-saline waters from the East Icelandic Current (EIC), which carries large amounts of nutrients and zooplankton into the southern Norwegian Sea (Kristiansen et al., 2019). Interplay between the AW and the (modified) East Icelandic Water from the EIC determine the physical oceanography and planktonic food abundance in the southern Norwegian, which has potential to influence the Faroe (Kristiansen et al., 2021) and Norwegian shelves (Skagseth et al., 2021). Like the SPG regulates the distribution of, and mixing between, source water masses west of the British Isles, the Norwegian Sea gyre regulates waters mass distribution and mixing in the southern Norwegian Sea (Hátún et al., 2021).
  1. Pulses
    Periods with an intensified atmospheric jet stream, often proxied by a high North Atlantic Oscillation (NAO) index (Hurrell, 1995), increases heat losses from the SPNA oceans and this induces deep winter convection, which is especially strong in the Labrador and Irminger Seas (Yashayaev, 2007). Strong convection increases the volume/size of the SPG and invigorates nutrient upwelling and thus primary production. Increased SPG volume, as well as the action of winds (through the so-called wind stress curl) brings the nutrient and zooplankton rich SPG water closer to the south Iceland and Faroes shelves, and can in this way “blow life” to these shelf ecosystems (Hátún et al., 2016). Such pulses have been documented to a) increase the nutrient contents all the way from the Labrador Sea, across the Irminger Sea and the Iceland Basin and into the southern Norwegian Sea (Hátún, et al., 2017), b) increase the abundance of the subarctic zooplankton species C. finmarchicus in the central Irminger Sea, the south Iceland shelf (Hátún et al., 2016) and in the subartic water masses in the Norwegian Sea (Kristiansen et al., 2021), c) increase the breeding success of the seabird black-legged kittiwake (Hátún, et al., 2017) and the total abundance of juvenile fish on the Faroe shelf (Jacobsen et al., 2019). During the last half century, such pulses occurred during the following years: 1976, 1984–1985, 1987, 1993–1995, 2000–2001, 2009, and 2017.
  2. Major shifts
    Associated with the same atmospheric drivers, but with additional profound shifts in gyre circulation and major ocean currents, we have also witnessed longer lasting shifts in the northeastern Atlantic. After a period with generally high NAO index values during the late 1980s and early 1990s, an abrupt weakening in the atmospheric forcing during winter 1995–1996 led to much weakened winter convection, which again initialized a major decline of the SPG size and circulation (Hátún et al., 2005; Häkkinen & Rhines, 2004). Less subarctic water reached the mixing region west of the British Isles, and the AW therefore became both warmer and more saline, but poorer in nutrients and the nutritious C. finmarchicus (Hátún, et al., 2009). Likely as a result, seabird populations like the large puffin colony in the Westman Islands started to decline (Lilliendahl et al., 2013). The strong subarctic pulse in 2000-2001 gave calanus-dependent species on the south Iceland and the Faroe shelf a much-needed injection, but after this pulse had passed these shelf ecosystems went into a serious recession (Hátún et al., 2022) . This event also had detrimental impacts along the European margin, were e.g. the sandeel abundance (ICES, 2019) and the prosperity of several seabird species strongly decline (Coulson, 2011). The mid-1990s change had, however, positive impact on the large pelagic blue whiting stock (Hátún et al., 2009), which is less sensitive to food availability early in the season (before May), and which benefits from a warmer and more stratified ocean. Many new marine species with warmer water affinity entered Faroese and Icelandic waters during this event (Valdimarsson et al., 2012), and it is therefore justifiable to refer to this as the mid-1990s regime shift (Hátún et al., 2009a).
    Since the above discussed pulses and longer-lasting shifts are related to similar physical processes, it is not trivial to determine whether a present or recently observed change represents a pulse, or if it marks a shift to a new state. Although the pulses around 2000–2001 and 2008–2009 were evident in hydrographic records around the northeastern Atlantic (clearest in salinity) and in biological production on the Faroe shelf (Jacobsen et al., 2019), they were not strong enough to flip the SPNA back into a subarctic state – like in the early 1990s. A major pulse initiated by increased convection during the winters 2014–2016 (Yashayaev & Loder, 2016) managed, however, to re-invigorate the SPG. This was observed as a drop in sea surface heights south of Iceland (Hátún & Chafik, 2018) and in the most rapid salinity drop in historical records in the same region (Holliday et al., 2020). Observations during the following years have demonstrated that the system shifted back to a state resembling the early 1990s. It is therefore timely to review possible ecological changes in the northeastern Atlantic for the years after 2015. And for those species exhibiting a change, to distinguish if this was a post-2015 pulse or maybe a more lasting shift back to a subarctic/more productive state.
    Discussions on the Norwegian Sea must include the additional influence by the variable EIC. The properties and transport in the EIC are, as mentioned, related to the SPG story due to similar atmospheric forcing, and since the AW properties in the clockwise circulation constitutes one of the sources for the EIC (Valdimarsson et al., 2012). The SPG and EIC signals are, however, not the same. The EIC influx was strong during the 1990s, and this brought large amounts of large and lipid rich copepods (Calanus hyperboreus and large stages of C. finmarchicus) into the Norwegian Sea. This influx declined sharply in 2003–2005, and with it decline the abundance of the nutritious zooplankton (Kristiansen et al., 2019). This relatively warm and saline Atlantic period prevailed until around 2016, when the EIC influx increased yet again, which immediately brought more of the subarctic copepods to the waters north of the Faroes, and even east to the Norwegian slope (Kristiansen et al., 2021; Skagseth et al., 2021). Possible implications of these shifts in the Norwegian Sea have already been discussed for zooplankton and the fish species, herring (Clupea harengus) (Kristiansen et al., 2021; Eliasen et al., 2022), mackerel (Scomber scombrus) (Homrum et al., 2022) and salmon (Salmo salar) (Utne et al., 2022)). Updates on the further development of these processes and their potential impacts on adjacent shelves and seabirds is warranted.
  3. Long-term trends
    Evidence for longer-term physical and ecological trends must also be discussed, especially now anthropogenic climate change is projected to fundamentally alter the functioning of marine ecosystem during the next 50–100 years (Pörtner et al., 2019). Only few hydrographical and biological records are longer than 50 years, and since the North Atlantic Ocean is characterized by a natural cycle of 50–60 years (the Atlantic Multidecadal Oscillation, AMO, Goldenberg et al., 2001), it is not trivial to distinguish between uni-directional trends and natural variability. Although we regularly read about warming trends and biota migrating polewards, fact is that increasing temperature trends are difficult to establish from hydrographic records in the northeastern Atlantic (González-Pola et al., 2023). The first order signal in these hydrographic records is a mid-1990s warming, followed by about twenty years with anomalously high temperatures and a subsequent temperature decrease down to the early 1990s level, i.e. the above mentioned shift. The pre-bloom (winter) silicate levels throughout the entire SPNA have, on the other hand, been declining since the 1980s in a more linear fashion than what can be ascribed to SPG-related natural variability alone (Hátún et al., 2017). Silicate is the limiting nutrient in the SPNA, so if this trend persists through the coming decades, the working of North Atlantic subarctic marine ecosystems is bound to change – fundamentally. It is conceivable that the mentioned bio-physical linkages, established during a period with higher nutrient concentrations already are altered.
    Based on a review of recent ecosystem changes on the Iceland, Faroe and Norwegian shelves, we should be able to test and maybe adjust/improve previously proposed hypotheses on bio-physical linkages.
Figure 1.1.jpg

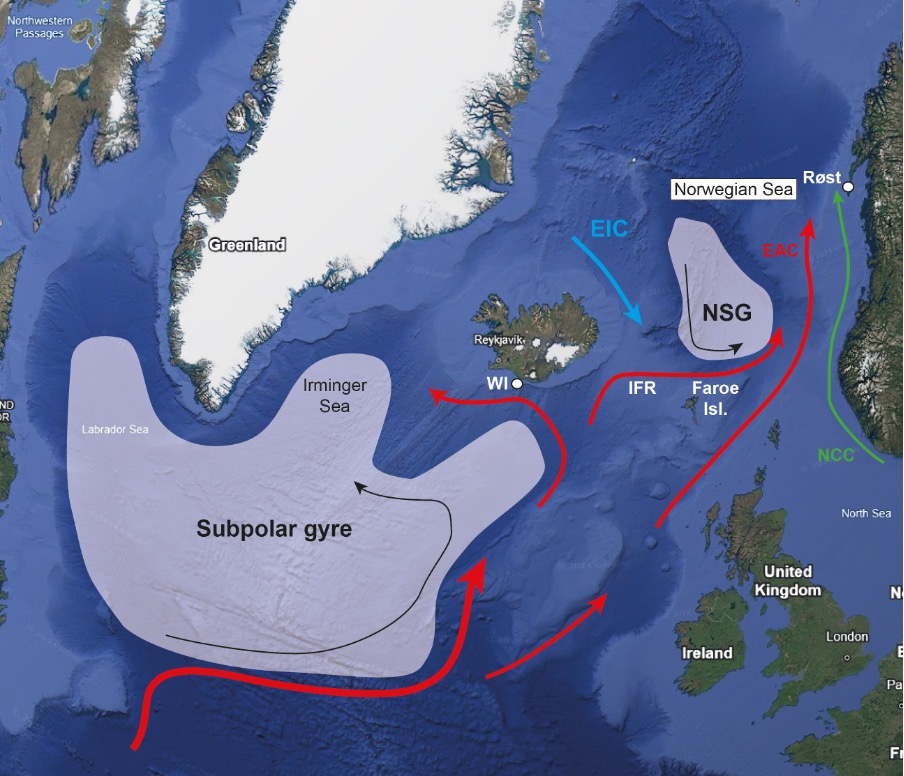

Figure 1.1 Google map showing the location of the subpolar gyre, Norwegian Sea Gyre (NSG) as well as the East Atlantic Current (EAC), the East Icelandic Current (EIC) and the Norwegian Coastal Current (NCC). The location of the Iceland Faroe Ridge (IFR) is shown as well as the seabird colonies in Vestmannaeyjar (WI) and Røst.

References

Coulson, J. C. (2011). The Kittiwake (J. Martin (ed.); Vol. 1). T & AD Poyser.
Goldenberg, S. B., Landsea, C. W., Mestas-Nunez,  a M., & Gray, W. M. (2001). The recent increase in Atlantic hurricane activity: causes and implications. Science (New York, N.Y.), 293(5529), 474–479. https://doi.org/10.1126/science.1060040
González-Pola, C., Larsen, K.M.H., Frantatoni, P., Beszczynska-Möller, A., 2023. ICES Report on Ocean Climate 2023. ICES Coop. Res. Reports 358, 123. https://doi.org/doi.org/10.17895/ices.pub.24755574
Häkkinen, S., & Rhines, P. B. (2004). Decline of subpolar North Atlantic circulation during the 1990s. Science, 304(5670), 555–559. isi:000220975100040
Hátún, H., Azetsu-Scott, K., Somavilla, R., Rey, F., Johnson, C., Mathis, M., Mikolajewicz, U., Coupel, P., Tremblay, J.-É., Hartman, S., Pacariz, S. V., Salter, I., & Ólafsson, J. (2017). The subpolar gyre regulates silicate concentrations in the North Atlantic. Scientific Reports, 7(1), 14576. https://doi.org/10.1038/s41598-017-14837-4
Hátún, H., Silva, T.S.G. da, Skagseth, Ø., Grønkjær, P., 2022. Editorial: Physical drivers of biogeographical shifts in the Northeastern Atlantic – and adjacent shelves. Front. Mar. Sci. 9, 1–4. https://doi.org/10.3389/fmars.2022.1062204
Hátún, H., & Chafik, L. (2018). On the recent ambiguity of the North Atlantic subpolar gyre index. Journal of Geophysical Research: Oceans, 2014, 1–5. https://doi.org/10.1029/2018JC014101
Hátún, H., Chafik, L., & Larsen, K. M. H. (2021). The Norwegian Sea Gyre – A Regulator of Iceland-Scotland Ridge Exchanges. Frontiers in Marine Science, 8. https://doi.org/10.3389/fmars.2021.694614
Hátún, H., Larsen, K. M. H., Eliasen, S. K., & Mathis, M. (2021). Major nutrient fronts in the northeastern Atlantic – from the subpolar gyre to adjacent shelves. In Chemical Oceanography of Frontal Zones (p. Accepted).
Hátún, H., Lohmann, K., Matei, D., Jungclaus, J. H., Pacariz, S. V., Bersch, M., Gislason, A., Ólafsson, J., & Reid, P. C. (2016). An inflated subpolar gyre blows life toward the northeastern Atlantic. Progress in Oceanography, 147, 49–66. https://doi.org/10.1016/j.pocean.2016.07.009
Hátún, H., Olsen, B., & Pacariz, S. V. (2017). The Dynamics of the North Atlantic Subpolar Gyre Introduces Predictability to the Breeding Success of Kittiwakes. Frontiers in Marine Science, 4(123). https://doi.org/10.3389/fmars.2017.00123
Hátún, H., Payne, M. R., Beaugrand, G., Reid, P. C., Sandø, A. B., Drange, H., Hansen, B., Jacobsen, J. A., & Bloch, D. (2009a). Large bio-geographical shifts in the north-eastern Atlantic Ocean: From the subpolar gyre, via plankton, to blue whiting and pilot whales. Progress in Oceanography, 80(3–4), 149–162. doi:10.1016/j.pocean.2009.03.001.
Hátún, H., Payne, M. R., Beaugrand, G., Reid, P. C., Sandø, A. B., Drange, H., Hansen, B., Jacobsen, J. A., & Bloch, D. (2009b). Large bio-geographical shifts in the north-eastern Atlantic Ocean: From the subpolar gyre, via plankton, to blue whiting and pilot whales. Progress In Oceanography, 80(3–4), 149–162. https://doi.org/10.1016/j.pocean.2009.03.001
Hátún, H., Payne, M. R., & Jacobsen, J. A. (2009). The North Atlantic subpolar gyre regulates the spawning distribution of blue whiting (Micromesistius poutassou). Canadian Journal of Fisheries and Aquatic Sciences, 66(5), 759–770. https://doi.org/10.1139/F09-037
Hátún, H., Sandø, A. B., Drange, H., Hansen, B., & Valdimarsson, H. (2005). Influence of the Atlantic subpolar gyre on the thermohaline circulation. Science (New York, N.Y.), 309(5742), 1841–1844. https://doi.org/10.1126/science.1114777
Holliday, N. P., Bersch, M., Berx, B., Chafik, L., Cunningham, S., Florindo-López, C., Hátún, H., Johns, W., Josey, S. A., Larsen, K. M. H., Mulet, S., Oltmanns, M., Reverdin, G., Rossby, T., Thierry, V., Valdimarsson, H., & Yashayaev, I. (2020). Ocean circulation causes the largest freshening event for 120 years in eastern subpolar North Atlantic. Nature Communications. https://doi.org/10.1038/s41467-020-14474-y
Hurrell, J. W. (1995). Decadal Trends in the North-Atlantic Oscillation - Regional Temperatures and Precipitation. Science, 269(5224), 676–679. isi:A1995RM70200029
Jacobsen, S., Gaard, E., Hátún, H., Steingrund, P., Larsen, K. M. H., Ólafsdóttir, S. R., & Poulsen, M. (2019). Environmentally Driven Ecological Fluctuations on the Faroe Shelf Revealed by Fish Juvenile Surveys. In Frontiers in Marine Science. https://doi.org/10.3389/fmars.2019.00559
Kristiansen, I., Hátún, H., Jacobsen, J. A., Eliasen, S. K., Petursdóttir, H., & Gaard, E. (2021). Spatial variability of the feeding conditions for the Norwegian spring spawning herring in May. Frontiers in Marine Science, In Review.
Kristiansen, I., Hátún, H., Petursdottir, H., Gislason, A., Broms, C., Melle, W., Jacobsen, J. A., Eliasen, S. K., & Gaard, E. (2019). Decreased influx of Calanus spp. into the south-western Norwegian Sea since 2003. Deep Sea Research Part I: Oceanographic Research Papers, 149(April 2018), 103048. https://doi.org/10.1016/j.dsr.2019.05.008
Lilliendahl, K., Hansen, E.S., Bogason, V., Sigursteinsson, M., Magnúsdóttir, M.L., Jónsson, P.M., Helgason, H.H., Óskarsson, G.J., Óskarsson, P.F. and Sigurðsson, Ó.J. (2013). Viðkomubrestur lunda og sandsílis við Vestmannaeyjar. Náttúrufræðingurinn 83 (1-2) 65-79. (Recruitment failure of puffins and sandeels at Vestmannaeyjar, In Icelandic).
Pörtner, H.O., Roberts, D.., Masson-Delmotte, V., Zhai, P., Tignor, M., Poloczanska, E.S., Mintenbeck, K., Alegría, A., Nicolai, M., Petzold, J., Rama, B., Weyer, N.M., 2019. IPCC Special Report on the Ocean and Cryosphere in a Changing Climate.
Skagseth, Ø., Broms, C., Gundersen, K., Hátún, H., Kristiansen, I., Mork, K. A., Søiland, H., & Petursdóttir, H. (2021). Variability in Atlantic and Arctic waters in the Norwegian Basin and ecosystem implication: 1995-2019. Frontiers in Marine Science, In Review.
Valdimarsson, H., Astthorsson, O. S., & Palsson, J. (2012). Hydrographic variability in Icelandic waters during recent decades and related changes in distribution of some fish species. ICES Journal of Marine Science, 69(5), 816–825. isi:000305460200015
Yashayaev, I. (2007). Hydrographic changes in the Labrador Sea, 1960-2005. Progress in Oceanography, 73(3–4), 242–276. isi:000248333000004
Yashayaev, I., & Loder, J. W. (2016). Recurrent replenishment of Labrador Sea Water and associated decadal-scale variability. Journal of Geophysical Research-Oceans, 121(11), 8095–8114. isi:000392841000010
